| Code: | 3730-LBN-S-DA |
| Name: | TRAIL 12 LED DALI |
| intended use: | Indoor |
| installation: | Suspension |
| fixing: | Suspension system with steel cable(s) and micrometric adjustment. Power cable L. 2100 mm. |
| body / structure: | Body made of extruded aluminum - Heads made of thermoplastic material |
| painting: | Interior polyester powder coating |
| color: | Rought white |
| optical reflector: | LED lens in methacrylate |
| power supply: | Integrated DALI dimmable driver for LEDs, max. output 500mA dc |

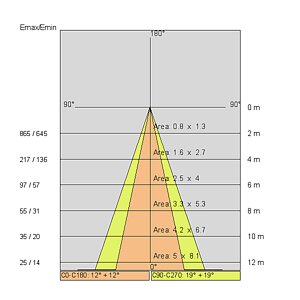

| light beam: | Elliptical 25x35° |
| insulation class: | Classe 1 |
| weight: | 2.15 kg |
| IP grade: | 20 |
| glowing wire: | 650 °C |
| lamp included: | Yes |
| LED type: | Power LED |
| overall power: | 21.0 W |
| device flow: | 1,519 lm |
| nominal life: | 50.000 (h) L80 B20 |
| color temperature: | 4000 K |
| color rendering index: | >90 |
| Note: |
On request. Bend Micro kit with drivers to be inserted into the sides of the fitting (no. 2 spots max per fitting). L 1000mm |
