| Code: | 3915-LBC-75 |
| Name: | RULED LINEAR IP |
| typology: | WALL - CEILING - SUSPENSION |
| family: | RULED LINEAR IP20 SOSPENSIONE |
| intended use: | Interior |
| installation: | Collection |
| recessed hole: | 60x250 mm |
| fixing: | With spring attachment. |
| body / structure: | Made of extruded aluminum and technopolymer headers and painted sheet metal frame |
| painting: | Polyester powders |
| color: | Black |
| optical reflector: | Optics with mirrored metallized polycarbonate reflectors |

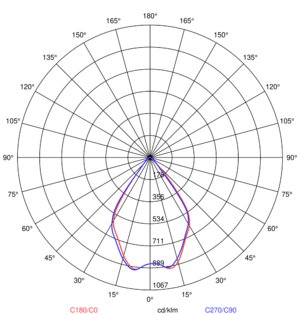

| light beam: | Extra diffusing 75° |
| insulation class: | Classe 3 |
| weight: | 0.35 kg |
| IP grade: | 20 |
| IK grade: | 07 |
| glowing wire: | °C |
| lamp included: | Yes |
| LED type: | POWER LED |
| overall power: | 19.0 W |
| device flow: | 2,766 lm |
| nominal life: | 50.000 (h) L80 B20 |
| color temperature: | 3000 K |
| color rendering index: | >80 |
| False ceiling thickness (min/max): | 5 mm |
| Note: |
On request: beams 12°- 55° - AS - AE On request: 12 LEDs and multiples of 3 On request: screen-printed protective glass, smooth black body with screen printing in black-smooth white body with screen printing in white. |
