| Code: | E6011-LBN |

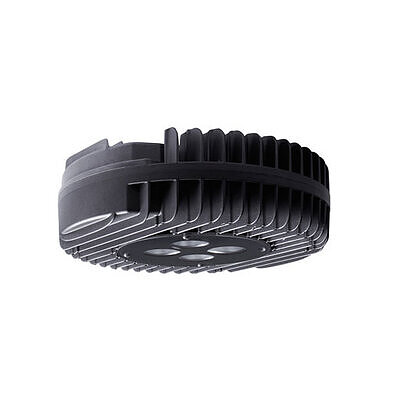

| Name: | SD-HIGHBAY |
| typology: | FUNCTIONAL - LARGE ENVIRONMENTS |
| family: | SD-HIGHBAY |
| intended use: | Indoor, Outdoor |
| installation: | Suspension |
| painting: | Polyester powder coating with special outdoor treatment (sandblasting, pickling, No. 3 washing, fluorzirconing, epoxy powder primer and polyester powder surface finish). |
| color: | Anthracite |
| optical reflector: | 99.8% pure aluminum reflector |
| power supply: | Integrated power supply for LED, stabilized output 1050mA dc |

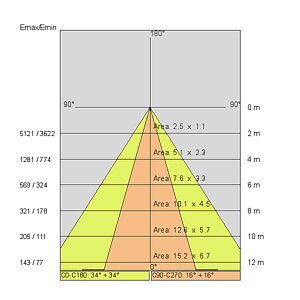

| light beam: | Elliptical E° |
| insulation class: | Classe 2 |
| weight: | 12.5 kg |
| IP grade: | 65 |
| IK grade: | 08 |
| glowing wire: | 850 °C |
| lamp included: | Yes |
| LED type: | COB LED |
| overall power: | 164.0 W |
| device flow: | 20,882 lm |
| nominal life: | 85.000 (h) L80 B10 |
| color temperature: | 4000 K |
| color rendering index: | >90 |
| Note: |
On request: protection grid |
