| Code: | E7070-LBN |

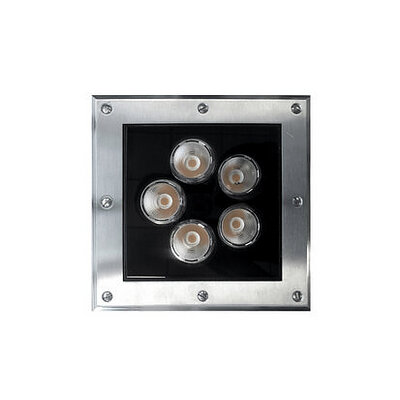

| Name: | OLODUM 220-Q |
| typology: | DRIVEOVER RECESSED UPLIGHTERS |
| family: | OLODUM QUADRO |
| intended use: | Outdoor |
| installation: | Ground Recessed |
| painting: | Luminaire body base painted in polyester powder with special outdoor treatment (sandblasting, pickling, No. 3 washing, fluorzirconating, epoxy powder primer and polyester powder surface finish). |
| color: | Satin stainless steel |
| optical reflector: | Faceted and polished polycarbonate reflector |
| power supply: | Integrated driver for LED , 750mA dc stabilized output |

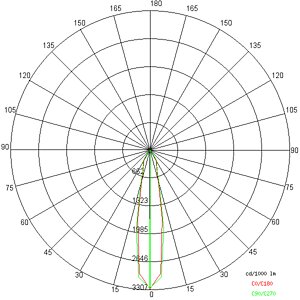

| light beam: | Concentric symmetrical 20° |
| insulation class: | Classe 2 |
| weight: | 4 kg |
| IP grade: | 67 |
| IK grade: | 10 |
| glowing wire: | 850 °C |
| lamp included: | Yes |
| LED type: | COB LED |
| overall power: | 29.0 W |
| device flow: | 3,345 lm |
| nominal life: | 50000 |
| color temperature: | 4000 K |
| color rendering index: | >90 |
| Walkability: | Yes |
| Carrability: | Yes |
| Note: |
On request: ...-TSC TORX safety screws |
