| Code: | E8142-MLBC-25 |

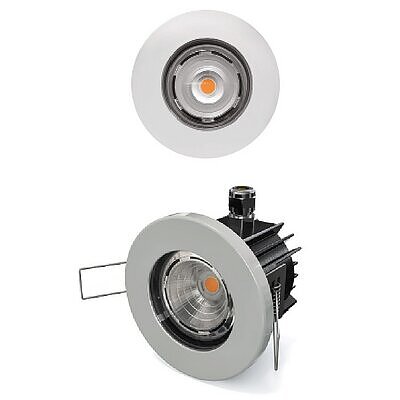

| Name: | EYES 90 |
| typology: | CEILING/WALL MICRO RECESSED SPOTS |
| family: | EYES |
| intended use: | Outdoor |
| installation: | Recessed Ceiling |
| recessed hole: | Ø 73 mm |
| fixing: | Steel springs |
| body / structure: | EN AB-47100 aluminum die-cast body and ABS ring/frame |
| painting: | Luminaire body base painted in polyester powder with special outdoor treatment (sandblasting, pickling, No. 3 washing, fluorzirconating, epoxy powder primer and polyester powder surface finish). |
| color: | Grey |
| optical reflector: | Metalized polycarbonate mirror reflector |
| power supply: | Not included must be ordered separately |
| light beam: | Symmetrical 25° |
| insulation class: | Classe 3 |
| weight: | 0.35 kg |
| IP grade: | 65 |
| IK grade: | 7 |
| glowing wire: | 850 °C |
| lamp included: | Yes |
| LED type: | COB LED |
| overall power: | 5.2 W |
| device flow: | 673 lm |
| nominal life: | 50.000 (h) L90 B20 |
| color temperature: | 3000 K |
| color rendering index: | >90 |
| False ceiling thickness (min/max): | 1 mm |
| Note: |
For LED light sources only: special version designed for formwork suitable for concrete installations. |
