| Code: | E8345LBC-SDA |

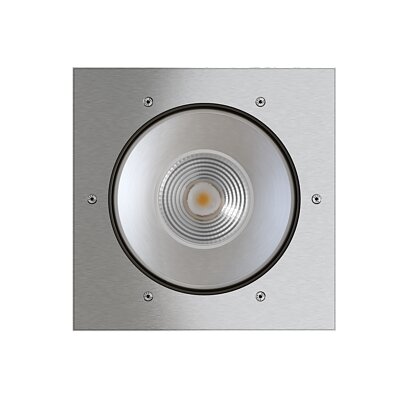

| Name: | OLODUM 300-Q FLAT |
| typology: | DRIVEOVER RECESSED UPLIGHTERS |
| family: | OLODUM QUADRO |
| intended use: | Outdoor |
| installation: | Ground Recessed |
| fixing: | Ground masonry |
| body / structure: | EN AB-47100 die-cast aluminum body - INOX steel ring and thermoplastic wall formwork. |
| painting: | Polyester powder coating with special outdoor treatment (sandblasting, pickling, No. 3 washing, fluorzirconing, epoxy powder primer and polyester powder surface finish). |
| color: | Satin stainless steel |
| optical reflector: | Metalized polycarbonate mirror reflector |
| power supply: | Integrated DALI dimmable driver for LED |
| light beam: | Concentric symmetrical 20° |
| insulation class: | Classe 1 |
| weight: | 9 kg |
| IP grade: | 67 |
| IK grade: | 10 |
| glowing wire: | 850 °C |
| lamp included: | Yes |
| LED type: | COB LED |
| overall power: | 35.0 W |
| device flow: | 4,241 lm |
| nominal life: | 50000 |
| color temperature: | 3000 K |
| color rendering index: | > 90 |
| Walkability: | Yes |
| Carrability: | Yes |
| Note: |
